Circuit Protection Components

• Application
• Protection of electrical circuits against earth leakage and overload/short circuit

• Color
• White / Grey

• Connection Type
• Screw Terminal

• Connector Type
• Screw type

• Dimension (L*W*H)
• ~~85mm x 36mm x 75mm

• Efficiency
• High reliability

• Energy Consumption
• Low (Standby operation)

• Feature
• Type A, Detects AC and pulsating DC leakage currents

• Frequency (MHz)
• 50/60 Hz

• Humidity %
• Up to 90% RH non-condensing

• IP Rating
• IP20

• Input Voltage
• 230/400V AC

• Insulation Material
• High-grade Thermoplastic

• Material
• Moulded Plastic, Copper Contacts

• Mounting Type
• DIN Rail Mounting

• No Of Poles
• 2 Pole

• Operating Temperature
• -5C to +40C

• Output Type
• Terminal Output

• Overheating Protection
• YES

• Phase
• Single Phase

• Product Type
• RCBO (Residual Current Breaker with Overcurrent)

• Protection Level
• Other, 30mA Residual Current, 6kA Short Circuit Breaking Capacity

• Rated Voltage
• 230/400V AC

• Shape
• Rectangular

• Size
• Standard DIN rail

• Surface Finish
• Matte

• Weight
• 340g

• Application
• Protection of electrical circuits from overload and short circuit

• Color
• White/Grey

• Connection Type
• Screw Terminal

• Connector Type
• Screw Type

• Dimension (L*W*H)
• Approx. 85mm x 81mm x 72mm

• Feature
• C Curve tripping characteristic, high reliability, compact design

• Frequency (MHz)
• 50/60 Hz

• Humidity %
• 95%

• IP Rating
• IP20 (Indoor Use)

• Input Voltage
• 415V AC Max

• Insulation Material
• Thermoplastic

• Material
• High-Quality Thermoplastic

• Mounting Type
• DIN Rail Mounting

• No Of Poles
• Three Pole

• Operating Temperature
• -5C to +40C

• Output Type
• AC

• Overheating Protection
• YES

• Phase
• Three Phase

• Product Type
• Miniature Circuit Breaker (MCB)

• Protection Level
• Other, 6kA

• Rated Voltage
• 415V AC

• Shape
• Rectangular

• Size
• Standard 3-pole MCB size

• Surface Finish
• Matte

• Weight
• Approx. 400g

• Application
• Power Supply, Step-Up, Step-Down, Inverting Applications

• Color
• Black (IC body)

• Connection Type
• Surface Mount (SMD/SMT)

• Connector Type
• SMD

• Dimension (L*W*H)
• SOIC-8 Package Size

• Efficiency
• Up to 90% (application dependent)

• Feature
• Integrated Switch, Wide Input Range

• Frequency (MHz)
• 0.1-0.2 MHz (typ. 100-200 kHz switching)

• Input Voltage
• 4V to 40V

• Insulation Material
• Plastic/Epoxy Molded Body

• Material
• Semiconductor (Integrated Circuit)

• Mounting Type
• Surface Mount

• Operating Temperature
• -40C to +125C

• Output Type
• Fixed Output

• Overheating Protection
• Other, Yes (Thermal Shutdown, Overcurrent Protection)

• Product Type
• Switching Regulator IC

• Protection Level
• Other, Moisture Sensitive Level 1

• Rated Voltage
• 12V Output

• Shape
• Rectangular (SOIC-8)

• Size
• SOIC-8 Standard

• Surface Finish
• Matte Tin

• Application
• Embedded systems, Consumer electronics, Automotive electronics, Industrial electronics

• Color
• Tray: Black; IC: Typically black package

• Connection Type
• Surface mount (TSOP/SSOP), 56-pin ZIF

• Connector Type
• None (SMD IC)

• Dimension (L*W*H)
• Tray: Approx. 330 mm x 160 mm x 10 mm (est.); IC: Standard ZIF 56-pin package

• Feature
• 256Mb NOR Flash, Parallel Interface, High-Speed Operation

• Humidity %
• Maximum 85% relative humidity (non-condensing, storage)

• Input Voltage
• 2.7V-3.6V (Vcc)

• Insulation Material
• Epoxy mold compound (IC body)

• Material
• Plastic (Tray); Individual IC material: Semiconductor (Silicon)

• Mounting Type
• Surface Mount

• Operating Temperature
• -40C to +85C (typical for industrial grade)

• Product Type

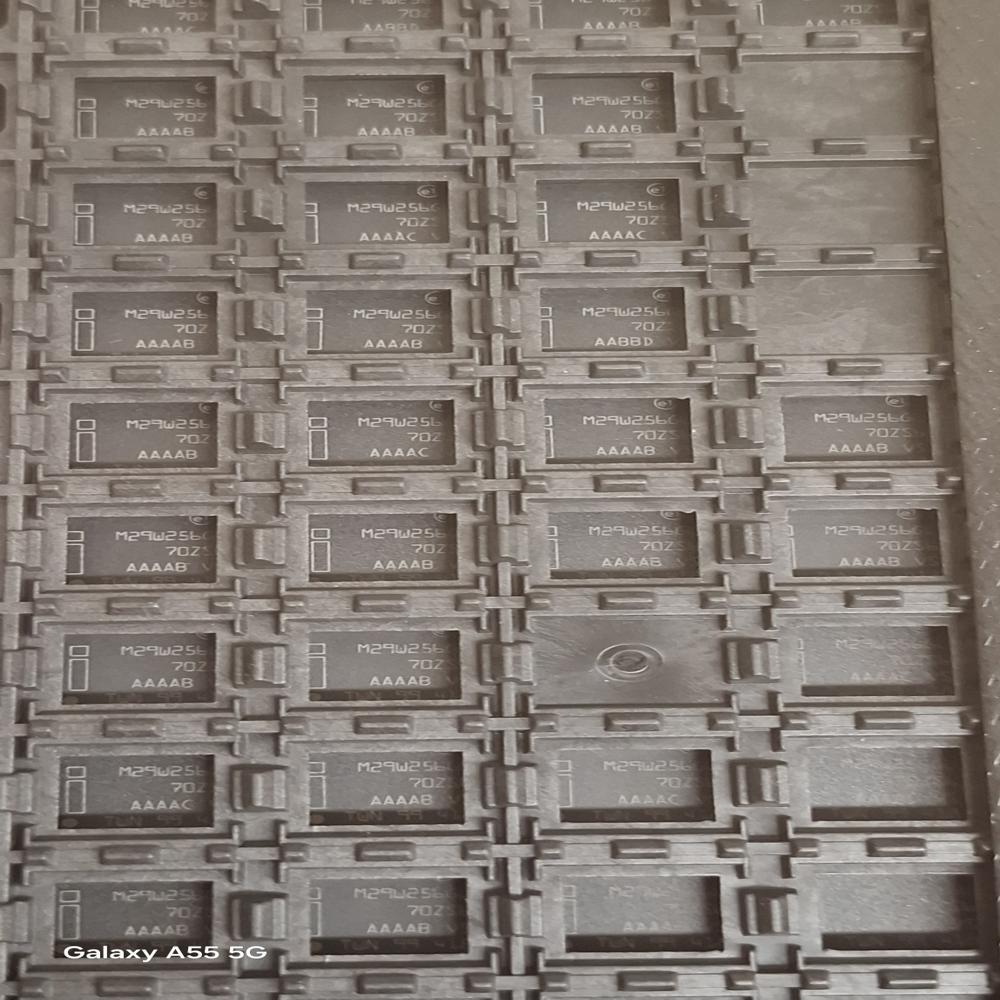

• NOR Flash Memory IC (M29W256GL70ZS6E)

• Shape
• Rectangular (tray); Individual IC: Standard IC package

• Size
• IC: Standard ZIF package size

• Surface Finish
• Matte (Tray), Standard IC molding (ICs)

• Application
• Digital Voice/Speech Processing

• Color
• Black

• Connection Type
• Through Hole

• Dimension (L*W*H)
• DIP40 Standard Size

• Energy Consumption
• Low Power Consumption

• Feature
• Includes LPC Speech Synthesis, Compatible with TI speech systems

• Input Voltage
• 5V DC

• Insulation Material
• Plastic Encapsulation

• Material
• Plastic/IC Encapsulation

• Mounting Type
• Through Hole Mount

• Operating Temperature
• 0C to +70C

• Output Type
• Digital/Analog Audio Signal

• Product Type
• Speech Synthesizer IC

• Protection Level
• Other, Standard IC Handling Precautions

• Rated Voltage
• 5V DC (Typical Supply Voltage)

• Shape
• DIP (Dual In-Line Package)

• Size
• 40 Pin DIP

• Surface Finish
• Matte Black (Standard IC Finish)

• Application
• Clock/Calendar, Timekeeping in electronic devices

• Color
• Black

• Connection Type
• Surface Mount (SMD/SMT)

• Dimension (L*W*H)
• SOIC-24 Standard Package

• Efficiency
• High, CMOS Low Power Consumption

• Energy Consumption
• Low Power, Standby <1A

• Feature
• Counters, Alarm, Battery-Backup, Serial Bus Interface

• Input Voltage
• 2.5V to 5.5V

• Insulation Material
• Plastic (IC body)

• Material
• Plastic, Silicon (Semiconductor)

• Mounting Type
• Surface Mount (SMD/SMT)

• Operating Temperature
• 0C to +70C

• Output Type
• Digital

• Product Type
• Serial-Interface Real-Time Clock (RTC) IC

• Rated Voltage
• 2.5V to 5.5V

• Shape
• Rectangular (SOIC-24)

• Size
• 24-pin SOIC

• Surface Finish
• Matte/Standard IC finish

• Application
• FPGA/CPLD Configuration Memory

• Color
• Black body, silver pins

• Connection Type
• Through-hole DIP

• Connector Type
• DIP Pins

• Feature
• Non-volatile memory for Xilinx devices

• Input Voltage
• 4.75V to 5.25V

• Insulation Material
• Epoxy Mold/Plastic

• Material
• Plastic/Resin package with metal leads

• Mounting Type
• DIP (Dual In-line Package) through-hole

• Operating Temperature
• 0C to +70C (Commercial)

• Output Type
• Serial Data

• Product Type
• Serial PROM (Programmable Read-Only Memory)

• Protection Level
• Other, Anti-static packaging

• Rated Voltage
• 5V nominal

• Shape
• Rectangular (DIP)

• Surface Finish
• Standard IC mold finish
